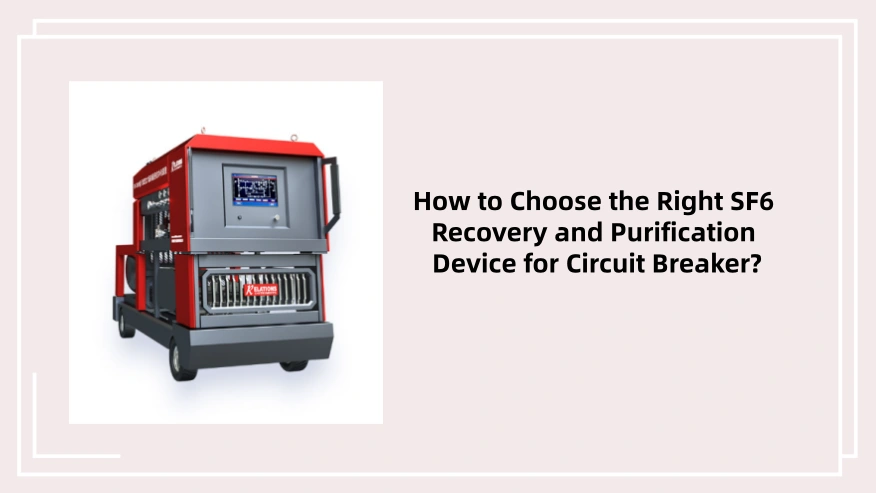

How to Choose the Right SF6 Recovery and Purification Device for Circuit Breaker?

Circuit breakers are critical components in power grids, and many rely on sulfur hexafluoride (SF6) gas for insulation and arc-quenching due to its excellent electrical properties. However, SF6 is a potent greenhouse gas with a global warming potential (GWP) 23,500 times that of CO₂ over 100 years. This is where the sf6 recovery and purification device for circuit breaker becomes indispensable. It not only helps power companies comply with environmental regulations (such as the Paris Agreement and regional carbon reduction policies) but also reduces SF6 waste, cuts operational costs, and ensures the safe and stable operation of circuit breakers.​

Why SF6 Recovery and Purification is Essential for Circuit Breakers​

SF6 in circuit breakers degrades over time due to high temperatures from arc quenching, moisture absorption, and mixing with impurities (e.g., dust, oil residues). Contaminated SF6 loses its insulation capacity, increasing the risk of circuit breaker failures—such as short circuits or equipment burnout—that can cause power outages.​

Without a sf6 recovery and purification device for circuit breaker, power companies often face two costly options: releasing used SF6 (which is illegal in most countries due to environmental laws) or replacing it with new gas. The recovery and purification device solves this by:​

• Recovering up to 99.5% of used SF6 from circuit breakers, minimizing gas loss.​
• Removing moisture, impurities, and decomposition byproducts (e.g., SO₂, HF) to restore SF6’s original performance.​
• Reusing purified SF6 in the same or other circuit breakers, reducing reliance on new gas purchases.​

Core Functions of a High-Quality SF6 Recovery and Purification Device for Circuit Breaker​

To meet the demands of power system maintenance, a reliable sf6 recovery and purification device for circuit breaker should have three key functions:​

1. Efficient SF6 Recovery​

The device uses a high-performance vacuum pump to extract SF6 from circuit breakers quickly—even at low gas pressures (down to 5 mbar). This ensures no residual SF6 is left in the equipment, which could interfere with maintenance or cause leaks during reassembly.​

2. Precision Purification​

Advanced filtration systems (including molecular sieves, activated carbon filters, and oil separators) target specific contaminants:​

• Moisture removal: Reduces SF6’s dew point to below -60°C, preventing insulation breakdown and corrosion of circuit breaker components.​
• Impurity filtration: Eliminates solid particles and oil residues that can clog gas channels or damage seals.​
• Decomposition byproduct treatment: Neutralizes toxic gases (like HF) to protect operators and equipment.​

3. Safe Storage and Reuse​

The device stores recovered and purified SF6 in high-pressure cylinders with pressure monitoring and safety valves. It also includes a gas quality testing module to verify purity (e.g., SF6 concentration ≥ 99.9%) before reuse, ensuring compliance with IEC 60480 standards for recycled SF6.​

How to Choose the Right SF6 Recovery and Purification Device for Circuit Breaker​

When selecting a device, power companies should consider four factors to align with their operational needs:​

• Processing Capacity: Match the device’s gas recovery rate (e.g., 50 kg/h or 100 kg/h) to the size of the circuit breakers in use. For large substation breakers, a high-capacity device reduces maintenance time.​
• Compatibility: Ensure the device works with different circuit breaker models (e.g., medium-voltage or high-voltage) and gas connection ports to avoid adapter issues.​
• Energy Efficiency: Opt for devices with low power consumption (e.g., ≤ 2 kW) and automatic shutdown features to save energy during idle periods.​
• Intelligence: Modern devices with touchscreen controls, remote monitoring (via IoT), and error alarms simplify operation and reduce human error—critical for remote substations.​

Maintenance Tips for SF6 Recovery and Purification Devices​

To extend the device’s lifespan and ensure consistent performance:​

• Replace filters (molecular sieve, activated carbon) every 500 hours of operation or as recommended by the manufacturer.​
• Inspect vacuum pumps quarterly for oil levels and leaks; replace pump oil every 1,000 hours.​
• Calibrate pressure gauges and gas quality sensors annually to maintain accuracy.​
• Store the device in a dry, well-ventilated area to prevent moisture damage to internal components.​

The sf6 recovery and purification device for circuit breaker is no longer a luxury but a necessity for modern power grids. It balances environmental compliance, cost savings, and equipment reliability—key priorities for power companies worldwide. By choosing the right device and following proper maintenance practices, utilities can reduce their carbon footprint, lower operational costs, and ensure uninterrupted power supply for communities. As the power industry continues to adopt greener technologies, the role of SF6 recovery and purification devices will only grow in importance.​
