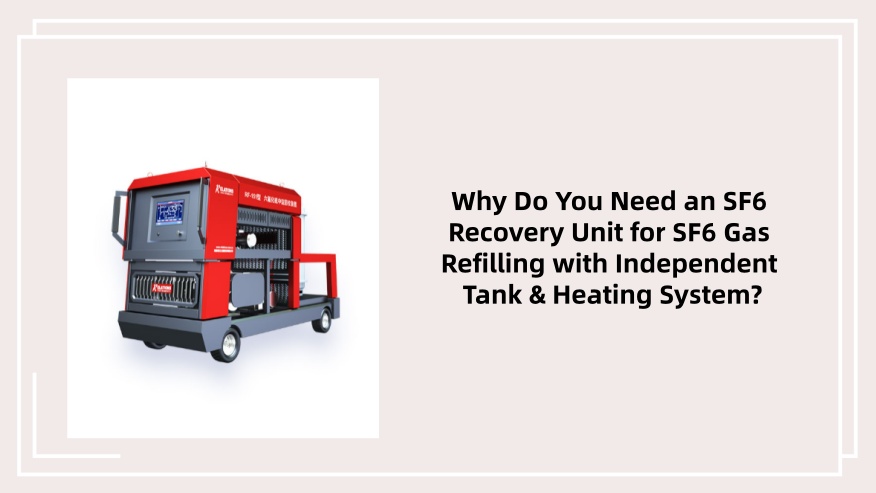

Why Do You Need an SF6 Recovery Unit for SF6 Gas Refilling with Independent Tank & Heating System?

SF6 (sulfur hexafluoride) gas is widely used in high-voltage electrical equipment—such as GIS (Gas-Insulated Switchgear), circuit breakers, and transformers—due to its excellent insulation and arc-extinguishing properties. However, SF6 is a potent greenhouse gas (with a global warming potential 23,900 times that of CO₂ over 100 years) and a scarce, high-cost resource. Leakage or waste of SF6 not only violates international environmental regulations (e.g., the Kyoto Protocol) but also increases operational costs for enterprises. This is where the SF6 Recovery Unit for SF6 gas refilling with independent tank & heating system becomes critical: it enables efficient recovery, purification, and reuse of SF6, while its unique independent tank and heating system solve key pain points in practical applications.

Why SF6 Recovery & Refilling Requires Specialized Equipment

Traditional SF6 handling often relies on simple collection methods, which suffer from low recovery efficiency, poor gas purity after treatment, and high risk of secondary leakage. For industries like power grids, renewable energy, and industrial manufacturing, these issues lead to three major problems:

• Environmental non-compliance: Unrecovered SF6 leaks into the atmosphere, contributing to global warming and failing to meet carbon reduction targets.
• Economic losses: SF6 is expensive (costing hundreds of dollars per kilogram), and wasteful use directly increases procurement budgets.
• Equipment damage: Impure SF6 (containing moisture, impurities, or air) can corrode electrical components, shorten equipment lifespan, and even cause safety accidents like insulation breakdown.

The SF6 Recovery Unit for SF6 gas refilling with independent tank & heating system addresses these challenges by integrating recovery, purification, storage, and refilling functions—all optimized for efficiency, safety, and sustainability.

Core Advantages: Independent Tank & Heating System

The most distinctive features of this SF6 recovery unit are its independent tank and integrated heating system, which set it apart from conventional models and directly enhance operational performance.

1. Independent Tank: Ensures Purity, Safety, and Continuity

The independent storage tank is designed to isolate recovered SF6 from external contaminants and avoid cross-contamination between different batches of gas. Its key benefits include:

Purity preservation: Unlike shared tanks, the independent design prevents mixing of impure (moisture-laden or dusty) SF6 with purified gas, ensuring the refilled gas meets IEC 60376 standards (purity ≥99.9%). This is critical for sensitive electrical equipment that requires high-insulation gas quality.

Safe pressure control: The tank is equipped with pressure sensors and overpressure relief valves, which monitor and regulate internal pressure in real time. This eliminates the risk of tank rupture caused by excessive pressure during recovery or storage.

Continuous operation: For large-scale projects (e.g., substation maintenance), the independent tank provides sufficient storage capacity (ranging from 50L to 500L, depending on models) to avoid frequent tank replacement, keeping refilling work uninterrupted.

2. Heating System: Guarantees Efficiency in Low-Temperature Environments

SF6 has a high boiling point (-63.8°C) but tends to liquefy at low temperatures (especially in cold regions or winter), which slows down gas flow, reduces recovery speed, and even blocks pipelines. The integrated heating system solves this problem by:

Maintaining gas phase: The system heats the recovery pipeline and storage tank uniformly (via electric heating elements or thermal oil circulation), keeping SF6 in a gaseous state. This ensures a stable recovery rate (up to 99.5% of residual gas in equipment) regardless of ambient temperature (as low as -30°C).

Protecting components: Liquefied SF6 can cause corrosion to valves and pumps. The heating system prevents liquefaction, extending the service life of core parts like vacuum pumps and filters.

Saving energy: Advanced models use intelligent temperature control—heating only when the temperature drops below a set threshold—avoiding unnecessary energy consumption and aligning with energy-saving goals.

How the SF6 Recovery Unit Works for Refilling

The SF6 Recovery Unit for SF6 gas refilling with independent tank & heating system follows a four-step process to ensure efficient, high-quality refilling:

• Preparatory connection: Connect the unit’s hoses to the electrical equipment (e.g., GIS) and evacuate the pipeline to remove air and moisture—preventing contamination of recovered SF6.
• Gas recovery: A high-performance vacuum pump extracts SF6 from the equipment, pushing it through a multi-stage filter (to remove dust, oil, and moisture) into the independent storage tank.
• Purification & heating: The filter system reduces moisture content to below 50ppm and impurity content to <1ppm. Meanwhile, the heating system maintains the tank temperature, ensuring SF6 remains gaseous.
• Refilling: When the target equipment needs refilling, the unit’s pressure booster sends purified SF6 from the independent tank back to the equipment—with real-time flow meters controlling the refilling volume to meet the equipment’s pressure requirements.

Key Application Scenarios

This unit is indispensable in industries that rely on high-voltage electrical equipment, including:

• Power grids: Used for maintenance of substations, transmission lines, and distribution systems—ensuring SF6 in GIS and circuit breakers is recycled and refilled safely.
• Renewable energy: Wind farms and solar power plants use it to service high-voltage inverters and transformers, reducing carbon footprints and operational costs.
• Industrial manufacturing: Factories with large electrical systems (e.g., steel, chemical, and automotive plants) rely on it to maintain SF6-filled equipment and comply with environmental regulations.
• Rail transit: Subway and high-speed rail systems use the unit for SF6 refilling in traction power equipment, ensuring reliable operation of rail networks.

How to Choose the Right SF6 Recovery Unit

When selecting an SF6 Recovery Unit for SF6 gas refilling with independent tank & heating system, focus on these factors:

• Compliance: Ensure the unit meets international standards (e.g., IEC 62271-4, ISO 10462-1) and local environmental regulations.
• Tank capacity: Match the tank size to your project scale (e.g., 100L for small substations, 500L for large industrial sites).
• Heating performance: Choose a system with adjustable temperature ranges and energy-saving controls, especially if operating in cold climates.
• After-sales support: Opt for suppliers that offer installation training, maintenance services, and filter replacement—critical for long-term reliable operation.

The SF6 Recovery Unit for SF6 gas refilling with independent tank & heating system is more than just a piece of equipment—it is a solution for balancing operational efficiency, environmental compliance, and cost savings. Its independent tank ensures gas purity and continuous work, while the heating system guarantees performance in harsh conditions. For industries dependent on SF6-filled electrical equipment, investing in this unit not only reduces greenhouse gas emissions but also cuts costs and extends equipment life. As global carbon reduction efforts intensify, this specialized SF6 recovery unit will become an essential tool for sustainable development in the energy and industrial sectors.
