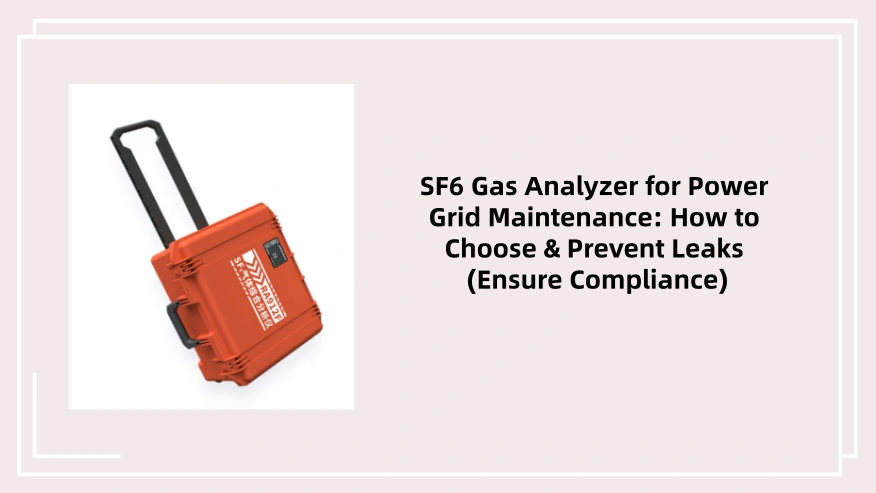

SF6 Gas Analyzer for Power Grid Maintenance: How to Choose & Prevent Leaks (Ensure Compliance)

SF6 (sulfur hexafluoride) gas is the backbone of modern power grids, widely used in high-voltage equipment like Gas-Insulated Switchgear (GIS), transformers, and circuit breakers. Its exceptional insulation and arc-extinguishing properties keep grid operations stable—yet SF6 is also one of the most potent greenhouse gases, with a global warming potential (GWP) 23,500 times that of CO₂ over 100 years. For power grid maintenance teams, balancing equipment performance with environmental compliance and safety depends on one critical tool: the SF6 gas analyzer. This article breaks down why an SF6 gas analyzer is non-negotiable for power grid maintenance, its key functions, how to choose the right model, and real-world applications.

Why Power Grid Maintenance Can’t Ignore SF6 Gas Analysis

Power grid failures often trace back to compromised SF6 gas quality or undetected leaks. When SF6 leaks occur, two major risks emerge:

• Equipment Failure: Reduced SF6 pressure weakens its dielectric strength, increasing the risk of arcing or short circuits in high-voltage gear—this can trigger blackouts or costly equipment damage.
• Environmental & Regulatory Penalties: Global standards (e.g., IEC 60480, EPA guidelines) mandate strict SF6 emission controls. Undetected leaks lead to non-compliance, resulting in fines and reputational harm.

An SF6 gas analyzer eliminates these risks by providing real-time, accurate data on gas condition—making it an indispensable part of preventive and corrective maintenance workflows.

Core Functions of an SF6 Gas Analyzer for Power Grid Maintenance

Not all SF6 analyzers are built for grid needs. A high-performance model tailored to power grid maintenance must deliver three critical capabilities:

1. Leak Detection

Even tiny SF6 leaks (as low as 1 ppm) can escalate into crises. Grid-focused analyzers use advanced technologies like infrared (IR) sensing or ultrasonic detection to locate leaks quickly—even in hard-to-reach areas of substations (e.g., GIS enclosures or transformer bushings). Portable models, in particular, let technicians conduct on-site inspections without disrupting grid operations.

2. Purity & Decomposition Analysis

SF6 degrades over time due to electrical stress or moisture, forming toxic byproducts (e.g., SF4, SO2). Impure SF6 loses its insulation properties, while byproducts corrode equipment. A quality analyzer measures SF6 purity (target: ≥99.8%) and detects decomposition products, alerting teams to replace gas or repair faulty components before failures occur.

3. Moisture Measurement

Moisture (humidity) in SF6 is a silent threat: it reduces dielectric strength and causes equipment corrosion. Power grid maintenance requires analyzers that measure moisture levels in parts per million (ppm)—ideally, below 50 ppm for GIS—to ensure gas performance aligns with IEC 60376 standards.

How to Choose the Right SF6 Gas Analyzer for Power Grid Maintenance

Grid operations demand durability, accuracy, and portability. When selecting an analyzer, prioritize these factors:

• Portability: Substations and grid sites are often remote—choose lightweight (≤5 kg) models with long battery life (8+ hours) for on-site use.
• Accuracy & Speed: Look for analyzers with a measurement range of 0–100% SF6 purity and 0–1000 ppm moisture, with results in <60 seconds to minimize downtime.
• Compliance: Ensure the model meets industry standards (e.g., IEC 60480, ISO 10462-3) to avoid regulatory gaps.
• Data Integration: Modern analyzers with Bluetooth or cloud connectivity let teams store data in CMMS (Computerized Maintenance Management Systems), streamlining reporting and trend analysis.

Real-World Applications in Power Grid Maintenance

An SF6 gas analyzer adds value across every maintenance scenario:

• Routine Inspections: Technicians use portable analyzers to check SF6 levels in GIS and transformers quarterly, catching leaks early.
• Equipment Overhauls: During GIS or circuit breaker repairs, analyzers verify SF6 purity before refilling, preventing post-repair failures.
• Emergency Response: After storms or grid disturbances, analyzers quickly detect leaks or moisture spikes, guiding rapid repairs to restore power.

The Future of SF6 Gas Analyzers in Grid Maintenance

As grids shift to smarter, more sustainable operations, SF6 analyzers are evolving too. Future models will integrate AI to predict gas degradation (e.g., alerting teams to replace SF6 before purity drops) and IoT for real-time remote monitoring—reducing the need for on-site visits. Additionally, as the industry explores low-GWP alternatives to SF6, analyzers will adapt to measure these new gases, ensuring continuity in maintenance workflows.

For power grid maintenance teams, an SF6 gas analyzer is more than a tool—it’s a safeguard against failures, non-compliance, and environmental harm. By prioritizing portability, accuracy, and compliance when choosing a model, teams can ensure their grids operate safely, efficiently, and sustainably. As grids grow more complex, the role of SF6 gas analyzers will only become more critical—making them a long-term investment in grid reliability.
