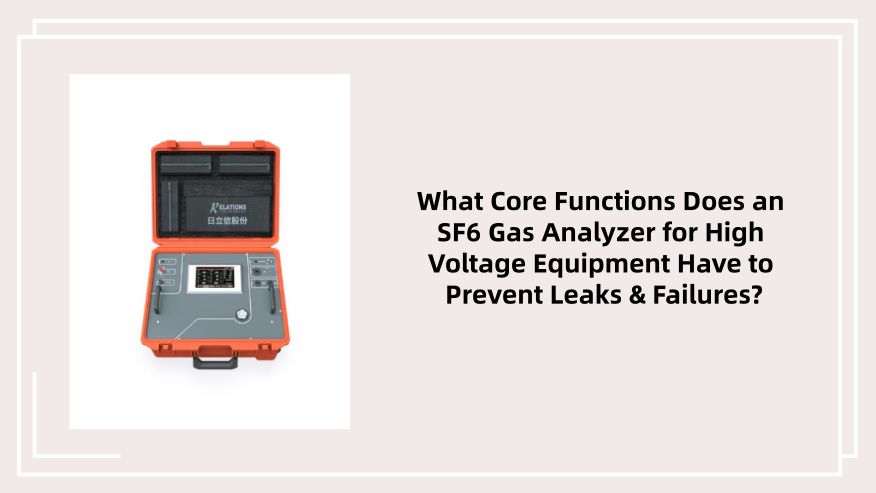

What Core Functions Does an SF6 Gas Analyzer for High Voltage Equipment Have to Prevent Leaks & Failures?

High voltage equipment—GIS (Gas Insulated Switchgear), circuit breakers, and transformers—powers 80% of global industrial and residential electricity (per the International Energy Agency, IEA). These assets depend on sulfur hexafluoride (SF6) gas: its dielectric strength (2.5x higher than air) and arc-quenching ability make compact, reliable high voltage systems possible. But SF6 has a global warming potential (GWP) 23,500x that of CO₂ over 100 years (IPCC data), and even 1 ppm leaks can trigger equipment failures, $50,000+ repair costs, or regulatory fines. For power utilities and plant managers, an SF6 gas analyzer for high voltage equipment isn’t just a tool—it’s the solution to avoiding these critical pain points.

1. What Does an SF6 Gas Analyzer for High Voltage Equipment Actually Do? (Core Functions)

The best SF6 gas analyzers for high voltage gear don’t just “measure gas”—they address the three biggest risks facing your equipment. Here’s how each function solves real-world problems:

Leak Detection: Stop Emissions & Equipment Failures Early

Unchecked SF6 leaks cost utilities $12B annually in unplanned downtime (IEEE reports). An advanced SF6 gas analyzer for high voltage GIS or circuit breakers uses two proven technologies to catch leaks fast:

Infrared (IR) Sensing: Portable IR analyzers scan enclosures at up to 3 meters, detecting leaks as small as 0.1 ppm—ideal for outdoor substations where wind might dilute gas.

Ultrasonic Detection: For indoor transformers, ultrasonic analyzers pick up the high-frequency sound of escaping SF6, even in noisy electrical rooms.

Example: A European utility used a handheld SF6 gas analyzer for high voltage outdoor substations to find a 0.5 ppm leak in a GIS unit—fixing it prevented a $300,000 transformer failure 6 months later.

Purity Measurement: Meet IEC Standards & Avoid Arc Flash

IEC 60480 (the global standard for SF6 in high voltage equipment) requires minimum 95% SF6 purity. Contaminants like air (from poor sealing) or nitrogen (from faulty gas refills) drop purity, increasing arc flash risk by 40%. A quality SF6 gas analyzer for high voltage transformers does more than display numbers:

It alerts you when purity dips below 95% (via in-built alarms).

It logs data for compliance audits (critical for EU ETS or U.S. EPA regulations).

Pro Tip: For new equipment, test purity within 72 hours of installation—this catches factory-sealing errors.

Humidity (Moisture) Testing: Prevent Corrosion & Toxic Byproducts

Moisture in SF6 gas (above 500 ppmv for outdoor breakers) causes two major issues:

Corrosion of copper conductors, leading to 30% faster equipment aging.

Formation of toxic HF gas under electrical stress (a safety hazard for technicians).

A portable SF6 gas analyzer for high voltage circuit breakers measures dew point (the temperature at which moisture condenses) to avoid this. For example: After heavy rain, a U.S. substation used their analyzer to find 750 ppmv humidity in a breaker—drying the gas prevented conductor corrosion and HF formation.

2. How to Choose the Right SF6 Gas Analyzer for High Voltage Equipment (5 Key Factors)

Not all analyzers work for high voltage applications. Prioritize these criteria to match your needs—whether you’re maintaining GIS, transformers, or outdoor breakers:

1. Compliance with Industry Standards

Skip analyzers that only “meet” IEC 60480—choose ones certified to it. Look for additional certifications like:

ISO 17025 (for calibration accuracy).

ATEX or IECEx (for use in explosive environments, e.g., oil refinery substations).

Why it matters: Uncertified analyzers may produce false readings, leading to failed audits or missed leaks.

2. Portability & Durability for Your Worksite

Outdoor substations/remote areas: Pick a handheld SF6 gas analyzer for high voltage equipment under 3 kg, with IP65 weather resistance (protects against rain/dust) and 8+ hours of battery life (e.g., the ABB AO2020).

Indoor GIS rooms: A benchtop analyzer (like Siemens’ LGA-4) works—prioritize Wi-Fi for data sync over portability.

3. Accuracy for High Voltage Use Cases

High voltage equipment needs tighter tolerances than low-voltage gear. Look for:

Purity accuracy: ±0.5% (not ±1%)—critical for avoiding arc flash.

Moisture accuracy: ±1 ppmv (not ±2%)—prevents hidden corrosion.

Leak detection range: 0.1–1000 ppm (covers both small and large leaks).

4. Compatibility with Your Equipment

Ensure the analyzer works with your gear’s gas ports:

GIS units: Need a analyzer with a 1/4” NPT sampling port (most common for GIS).

Transformers: Look for compatibility with DIN 477 connections.

Bonus: Analyzers with interchangeable sampling hoses (e.g., the Draeger X-am 8000) work for multiple equipment types.

5. Data Integration for Smart Maintenance

Modern power grids use cloud platforms (e.g., Schneider Electric’s EcoStruxure) for predictive maintenance. Choose an SF6 gas analyzer for high voltage smart grids that:

Syncs data via Bluetooth/Wi-Fi (no manual entry errors).

Exports reports in CSV/PDF (for audits).

Integrates with CMMS (Computerized Maintenance Management Systems) like SAP.

3. How to Maintain Your SF6 Gas Analyzer (Avoid False Readings)

Even the best analyzer fails without proper care. Follow these steps to keep it accurate for 5+ years:

Calibrate Every 6 Months (Not 12!)

High voltage environments (electromagnetic interference, temperature swings) throw off sensors faster. Use:

NIST-traceable SF6 reference gas (99.995% pure)—cheaper “generic” gas leads to wrong readings.

A calibration log (digital or physical) to track dates—required for ISO 9001 compliance.

Protect Sensors from Contamination

After use, flush the sampling line with dry nitrogen (99.99% pure) for 30 seconds—this removes leftover SF6 and moisture.

Store the analyzer in a dry case (20–25°C, 30–50% humidity)—avoid leaving it in substations overnight (extreme cold damages IR sensors).

Test Sampling Lines Before Each Use

A leaky sampling line (from cracked hoses) causes underreported moisture/leaks. Test it by:

Connecting the line to a sealed SF6 canister (99.9% pure).

Checking if the analyzer reads 99.9%—if not, replace the hose.

4. 2025 Trends: Next-Gen SF6 Gas Analyzers for High Voltage Equipment

The industry is shifting to “sustainable, smart” analyzers—here’s what to watch for:

AI-Powered Predictive Monitoring

Brands like ABB and Siemens now offer analyzers that:

Analyze 12 months of historical data to forecast purity drops (e.g., “Purity will hit 94% in 8 weeks—plan gas replacement”).

Alert you to “abnormal trends” (e.g., sudden 10% humidity spikes) before they cause damage.

SF6 Recovery + Analysis in One Tool

New models (e.g., the ENERVAC SF6 Gas Analyzer/Recovery Unit) don’t just detect leaks—they capture escaped SF6 for recycling. This cuts emissions by 80% and saves money on new gas.

Miniaturized Sensors for Tight Spaces

High voltage equipment often has hard-to-reach ports (e.g., GIS busbars). Analyzers with 10cm-long “needle sensors” (like the Testo 350) can access these spots without disassembling gear.

Conclusion: Your High Voltage Equipment’s Most Important Investment

An SF6 gas analyzer for high voltage equipment isn’t an expense—it’s a way to avoid $100,000+ failures, meet global regulations, and reduce your carbon footprint.

To choose the right one:

• Start with your pain points: Do you need portability for outdoor substations? AI for predictive maintenance?
• Prioritize certifications (IEC 60480, ISO 17025) over price—cheap analyzers cost more in the long run.
• Maintain it rigorously: Calibrate every 6 months, protect sensors, and test sampling lines.

For power utilities and plant managers, the right SF6 analyzer keeps your equipment running, your team safe, and your operations compliant—now and in the future.
