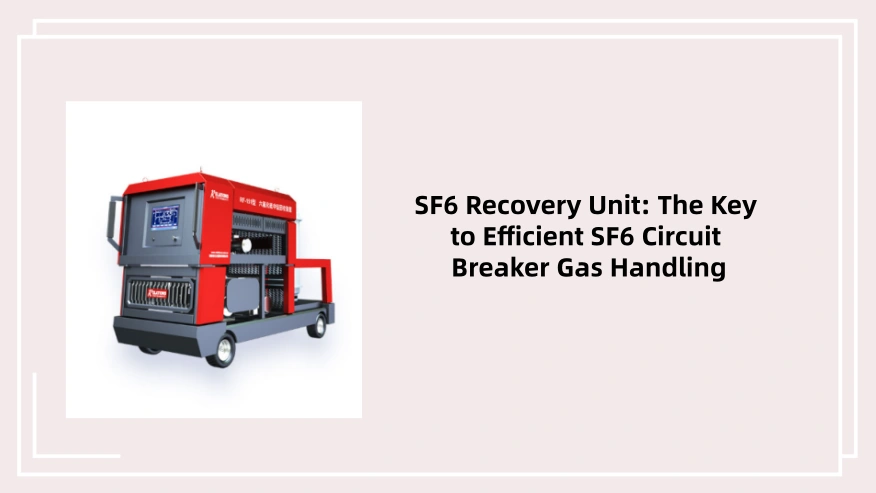

SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling

SF6 (sulfur hexafluoride) gas is widely used in SF6 circuit breakers due to its excellent insulation and arc-extinguishing properties, making it a cornerstone of modern power grids. However, SF6 is a potent greenhouse gas—with a global warming potential (GWP) 23,900 times that of CO₂ over a 100-year period—and its uncontrolled emission poses severe environmental risks. This is where an SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling becomes indispensable. It not only ensures compliance with international environmental regulations (such as the Montreal Protocol and EU F-Gas Regulation) but also optimizes the lifecycle management of SF6 gas in circuit breakers.

Why SF6 Circuit Breaker Gas Handling Requires a Specialized Recovery Unit

SF6 circuit breakers rely on pure SF6 gas to maintain operational safety and efficiency. Over time, factors like equipment aging, seal wear, or maintenance activities (e.g., overhauling or decommissioning) can lead to gas leakage or contamination. Without proper handling, leaked SF6 harms the environment, while contaminated gas reduces the breaker’s insulation performance—increasing the risk of power outages or equipment failure.

A standard gas handling tool cannot meet the strict requirements of SF6 circuit breakers. Unlike generic devices, an SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling is engineered to address the unique needs of this application: it achieves high vacuum levels to maximize gas recovery, removes moisture and impurities to restore gas purity, and enables safe storage or reuse of SF6—avoiding the waste of this costly resource.

Core Functions of an SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling

A high-quality SF6 recovery unit integrates four key functions to streamline SF6 circuit breaker gas handling, ensuring both environmental compliance and operational efficiency:

1. High-Efficiency SF6 Recovery

The unit uses a dual-stage vacuum pump to create a deep vacuum (typically ≤1 mbar) inside the circuit breaker’s gas chamber. This allows it to recover up to 99.5% of the SF6 gas—far higher than basic recovery tools. For example, during a circuit breaker overhaul, the unit can extract residual SF6 from narrow pipelines and sealed components, preventing emissions that would otherwise occur during disassembly.

2. Gas Purification and Drying

Contaminants like moisture, air, or decomposition byproducts (e.g., SO₂, HF) can degrade SF6’s performance. The recovery unit includes multi-stage filtration systems (molecular sieves, activated carbon, and particulate filters) to remove these impurities. It reduces moisture content to ≤5 ppm (parts per million) and air content to ≤0.1%, ensuring the recovered SF6 meets the IEC 60376 standard for reuse in circuit breakers—eliminating the need to purchase new gas.

3. Safe Storage and Transfer

After recovery and purification, the unit stores SF6 in high-pressure, corrosion-resistant cylinders (designed for SF6 compatibility). It also features a pressure-regulating system to transfer gas back to the circuit breaker during refilling, with precise flow control to avoid overcharging or undercharging—critical for maintaining the breaker’s arc-extinguishing capability.

4. Intelligent Monitoring and Control

Modern SF6 Recovery Units for SF6 Circuit Breaker Gas Handling are equipped with digital displays and sensors to monitor key parameters: gas pressure, temperature, vacuum level, and purification efficiency. Some models include Bluetooth or Wi-Fi connectivity, allowing operators to track data remotely and generate compliance reports—simplifying audits for environmental regulators.

Advantages of Using a Specialized SF6 Recovery Unit

For power utilities, industrial facilities, or electrical maintenance companies, investing in an SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling delivers three core benefits:

1. Environmental Compliance

With governments worldwide tightening regulations on SF6 emissions (e.g., the EU F-Gas Regulation limits SF6 leakage to <0.5% per year for new equipment), a recovery unit ensures businesses avoid fines and meet sustainability goals. It also supports carbon neutrality efforts by reducing the need to produce new SF6 (which requires energy-intensive manufacturing processes).

2. Cost Savings

SF6 is a high-cost gas (typically \(100–\)300 per kilogram). By recovering and reusing up to 99.5% of the gas from circuit breakers, the unit cuts down on new gas purchases. Additionally, it reduces maintenance time: a single recovery unit can handle gas handling for multiple circuit breakers, eliminating the need for multiple specialized tools.

3. Enhanced Equipment Reliability

Purified, dry SF6 extends the lifespan of SF6 circuit breakers. Contaminated gas often causes internal corrosion or insulation breakdown, leading to unplanned downtime. By maintaining gas purity, the recovery unit reduces the frequency of breaker failures and extends maintenance intervals—critical for power grids and industrial facilities that rely on continuous electricity supply.

Application Scenarios for SF6 Recovery Units

An SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling is essential in three key scenarios:

1. Routine Maintenance

During annual or bi-annual circuit breaker maintenance, the unit recovers SF6 before disassembly, purifies it, and refills it after maintenance. This ensures the breaker returns to service with optimal gas quality.

2. Equipment Decommissioning

When replacing old SF6 circuit breakers, the recovery unit extracts all SF6 from the decommissioned equipment, preventing emissions and allowing the gas to be reused in other breakers or safely recycled.

3. Emergency Leak Response

If a circuit breaker develops a sudden gas leak, the unit can quickly recover the remaining SF6, minimizing environmental impact and allowing technicians to repair the leak without wasting gas.

How to Choose the Right SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling

When selecting a recovery unit, consider four key factors to ensure it meets your needs:

1. Recovery Capacity

Choose a unit with a recovery rate matching your circuit breakers’ gas volume. For small to medium breakers (5–50 kg of SF6), a unit with a 1–2 kg/h recovery rate is sufficient. For large utility-scale breakers (50+ kg of SF6), opt for a high-capacity unit (3–5 kg/h).

2. Purification Performance

Verify that the unit’s filtration system meets IEC 60376 standards (moisture ≤5 ppm, air ≤0.1%). Look for units with replaceable filters for easy maintenance.

3. Portability and Durability

If you need to handle circuit breakers in remote locations (e.g., outdoor substations), choose a compact, wheeled unit with a rugged design. For indoor use, a stationary unit may offer higher capacity.

4. Safety Features

Ensure the unit includes overpressure protection, temperature monitoring, and flame arrestors to prevent accidents during gas handling. Certifications like CE or UL indicate compliance with safety standards.

As the power industry continues to rely on SF6 circuit breakers, an SF6 Recovery Unit for SF6 Circuit Breaker Gas Handling is no longer an optional tool—it is a necessity for environmental compliance, cost efficiency, and equipment reliability. By choosing a unit tailored to your circuit breakers’ needs, you can minimize SF6 emissions, reduce operational costs, and ensure your power systems run safely. Whether for routine maintenance, decommissioning, or emergency response, the right SF6 recovery unit protects both the environment and your bottom line.
